Gas & Oilfield Wire Ropes

Gas & oilfield wire ropes with higher breaking strength, excellent flexibility, better rotation resistance and extended lifespan are urgently needed with the development of gas and oil industry. These steel wire ropes are designed to increase the productivity on rigs and minimize downtime.

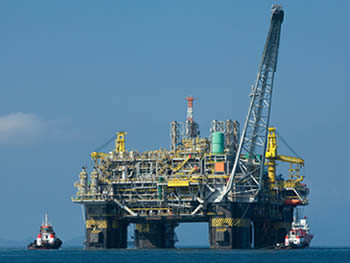

Steel wire ropes are applied to oil platforms.

Steel wire ropes for oil platform

A wide range of gas & oilfield wire ropes can be supplied for different applications as shown below:

  • Drilling.
  • Marine riser tensioner.
  • Offshore cranes and winches.
  • Platforms.
  • Deep water mooring.
  • Various geophysical applications.

Details:

  • Material: high carbon wires or other custom materials.
  • Standard: complying with API standards.
  • Tensile strength: 1370N/mm2 up to 2260N/mm2.
  • Coating: zinc coating or other custom coating upon request.
  • Styles: regular, swaged, compacted or non-compacted.

Structure:

A plan of steel wire rope GOWR-619S

GOWR-619S

Feature:
  • For rotary drilling line.
  • Six seale strands.
  • Standard drill line.
  • Complying with API 9A.
  • A combination of abrasion and fatigue resistance.
A plan of steel wire rope GOWR-619P

GOWR-619P

Feature:
  • For rotary drilling line.
  • Six seale strands.
  • Plastic impregnated rope for distributing internal stresses and keeping dirt out.
  • Can withstand sunlight, cold weather and high operating temperature.
A plan of steel wire rope GOWR-629PC with plastic core

GOWR-629PC

Feature:
  • For rotary drilling line.
  • Six compacted strands.
  • Plastic impregnated core for min internal nicking.
  • Smoother surface.
  • More metallic area with increased strength, excellent wear and fatigue resistance.
A plan of steel wire rope GOWR-636S

GOWR-636S

Feature:
  • For mast raising line.
  • Six high performance strands.
  • Meet API specification.
  • Right regular or right lang lay structure.
  • With independent wire rope core.
A plan of steel wire rope GOWR-631SW

GOWR-631SW

Feature:
  • For tubing line.
  • Six swaged strands.
  • High density with greater crushing and abrasion resistance.
  • Independent wire rope core.
A plan of steel wire rope GOWR-626WS

GOWR-626WS

Feature:
  • For tubing line.
  • 6 × 26 strands.
  • Excellent crush and fatigue resistance.
  • Increased inner wire number for high stability.
  • Independent wire rope core.
A plan of steel wire rope GOWR-9SW

GOWR-9SW

Feature:
  • For tubing line.
  • Special nine swaged high density strands.
  • Greater and smoother surface than GOWR-631SW.
  • Extra drum crushing resistance.
A plan of steel wire rope GOWR-67FC

GOWR-67FC

Feature:
  • For sand line.
  • Six steel strands.
  • With fiber core.
  • Designed for harsh conditions.
  • Lager outer wires.
  • Excellent abrasion and fatigue resistance.
  • Right regular lay.
A plan of steel wire rope GOWR-57SW

GOWR-57SW

Feature:
  • For sand line.
  • Five swaged strands for greater strength per diameter.
  • With fiber core.
  • High density construction.
  • Greater surface area and less scrubbing.
A plan of steel wire rope GOWR-836PC

GOWR-836PC

Feature:
  • For offshore applications.
  • Eight compacted strands.
  • Plastic impregnated core.
  • Greater surface area than GOWR-629C.
  • Less sheave wear.
  • High strength.
A plan of steel wire rope GOWR-621F

GOWR-621F

Feature:
  • For cable tool line.
  • Six high performance strands.
  • With fiber core.
  • Added filler wires for increased bending fatigue resistance.
A plan of steel wire rope GOWR-649F

GOWR-649F

Feature:
  • For riser tensioner ropes.
  • Six high performance strands.
  • With independent wire rope core.
  • Large number of wires for increased stability.
  • High fatigue resistance.
